Mechanical Counter assembly
This process is illustrated using the Damage Counter, but is the same for the larger faction counters.
Step by step guide
Getting ready

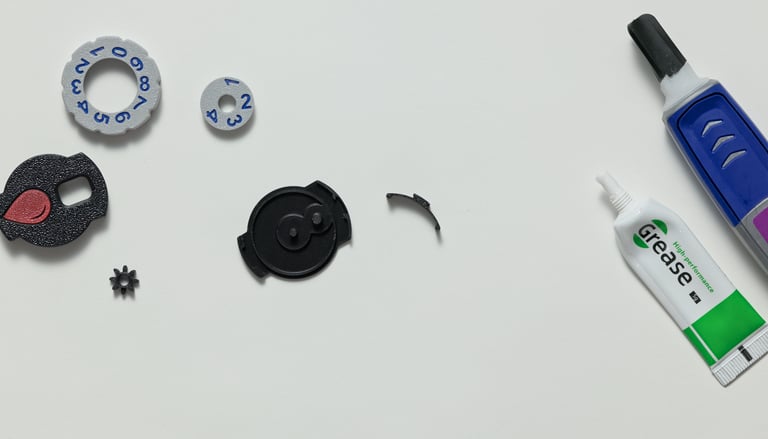

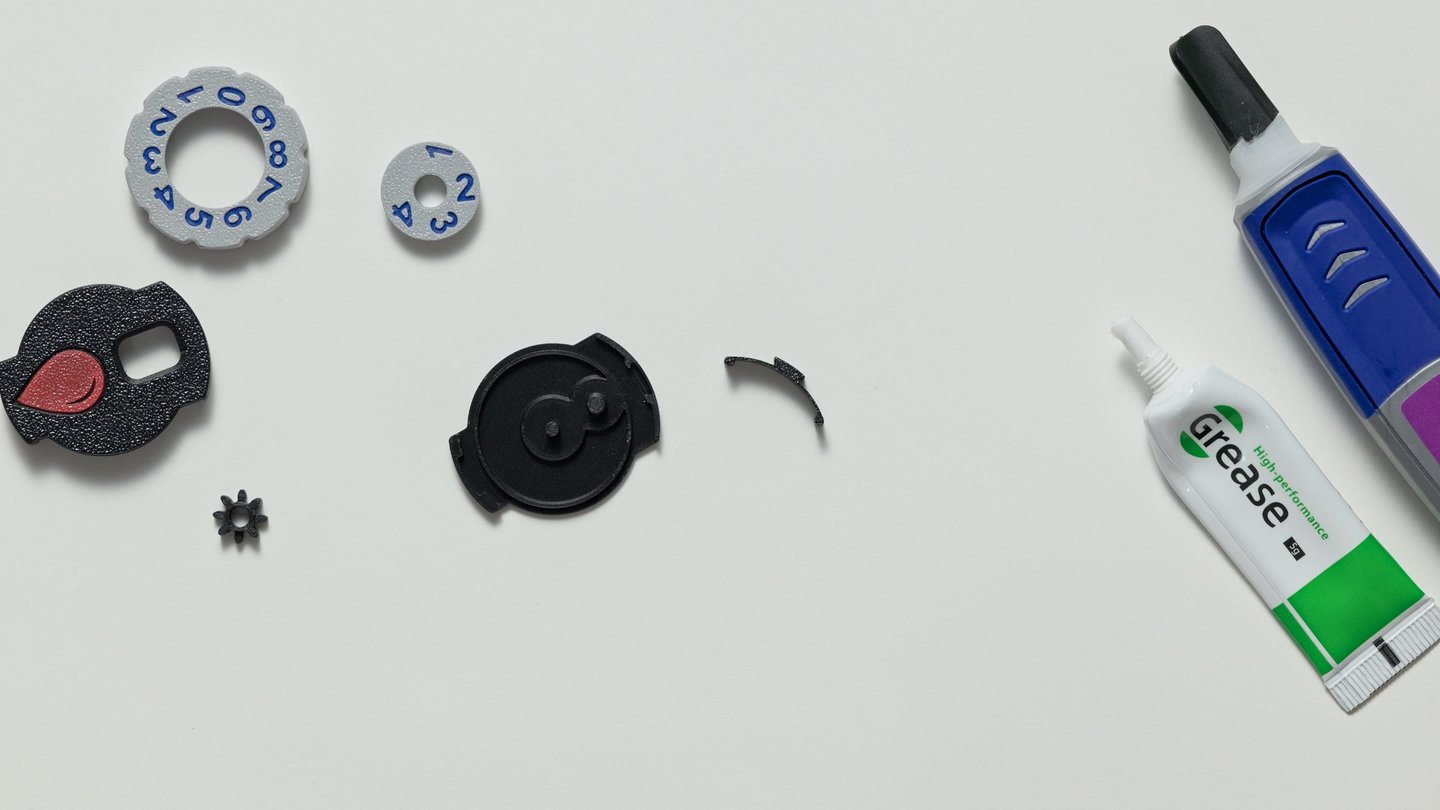

You will need (as pictured):
The printed parts
Super glue
Silicone grease (optional)
Step 1.

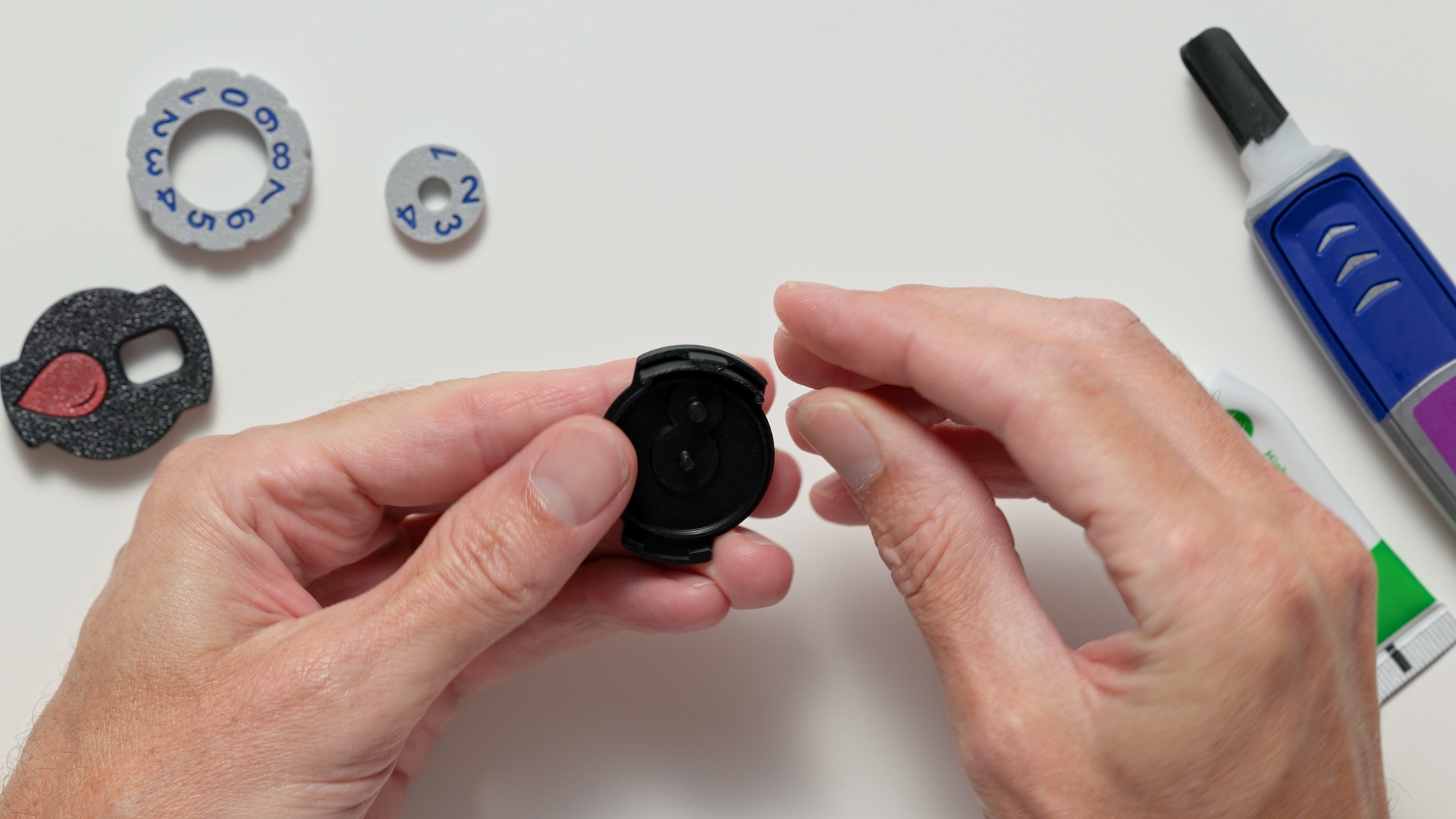

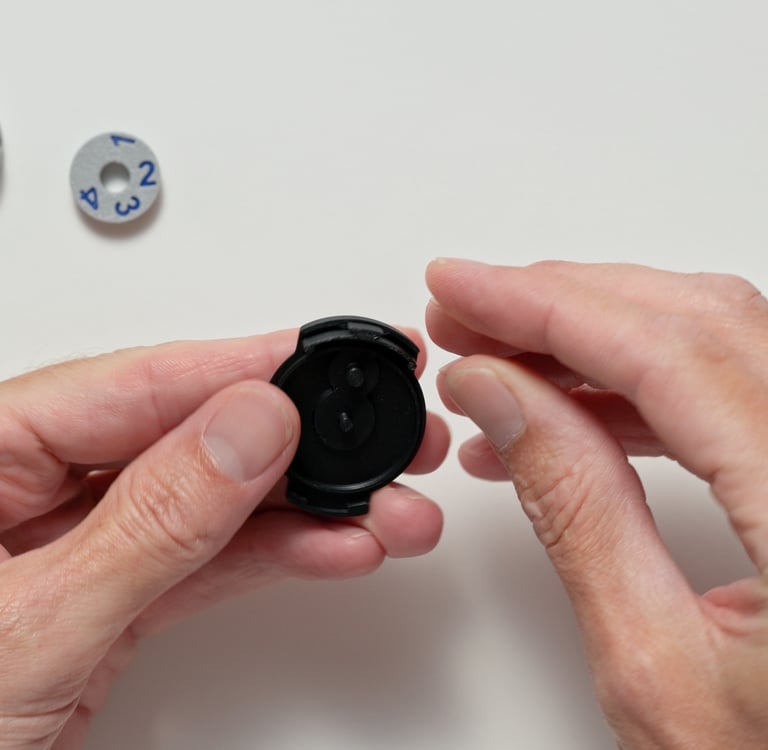

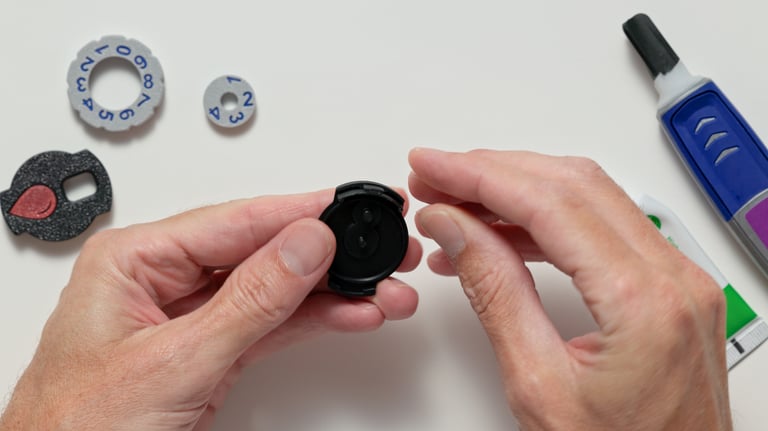

Insert the clicker.
Step 2.

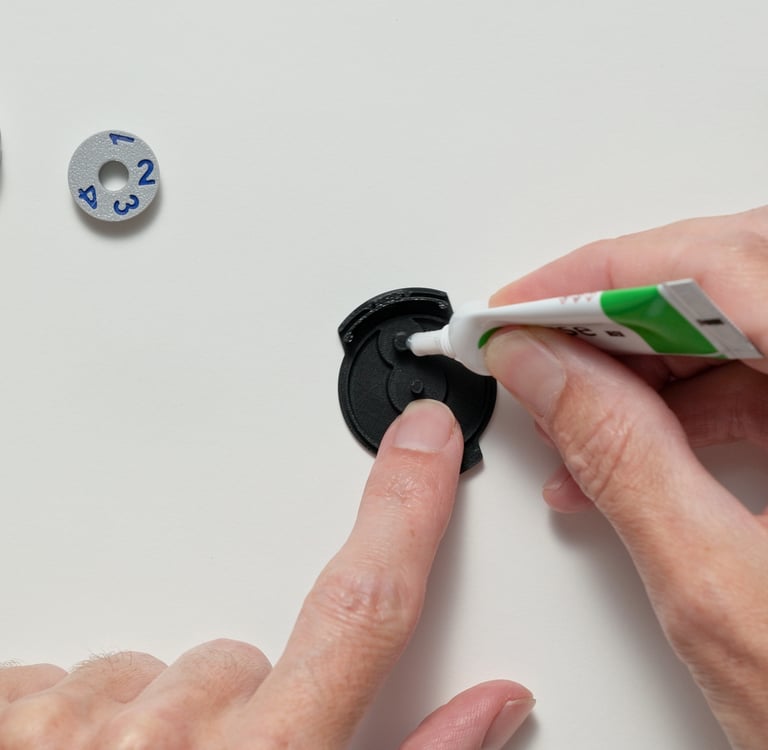

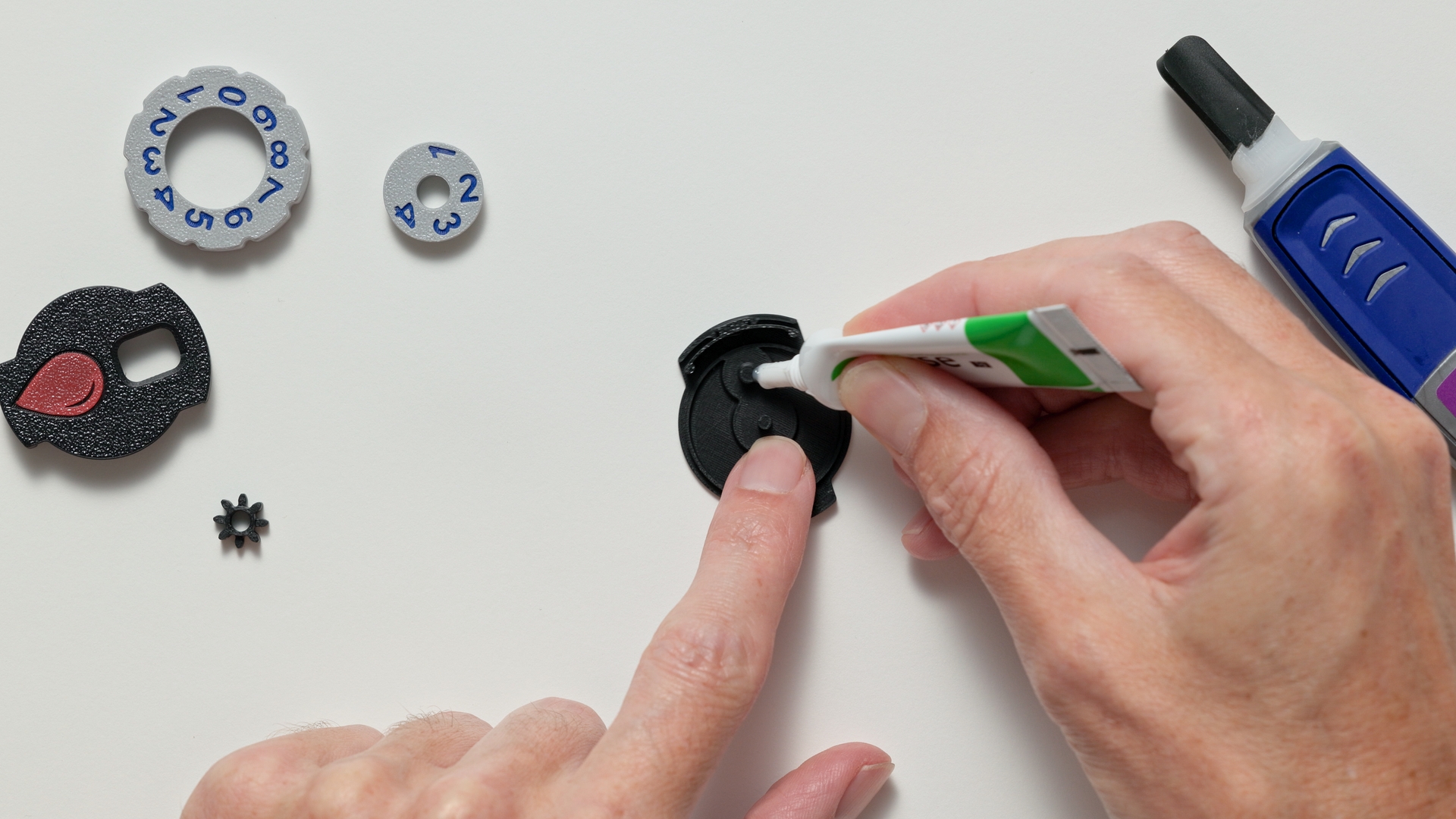

Grease the small gear mounting pole.
Step 3.

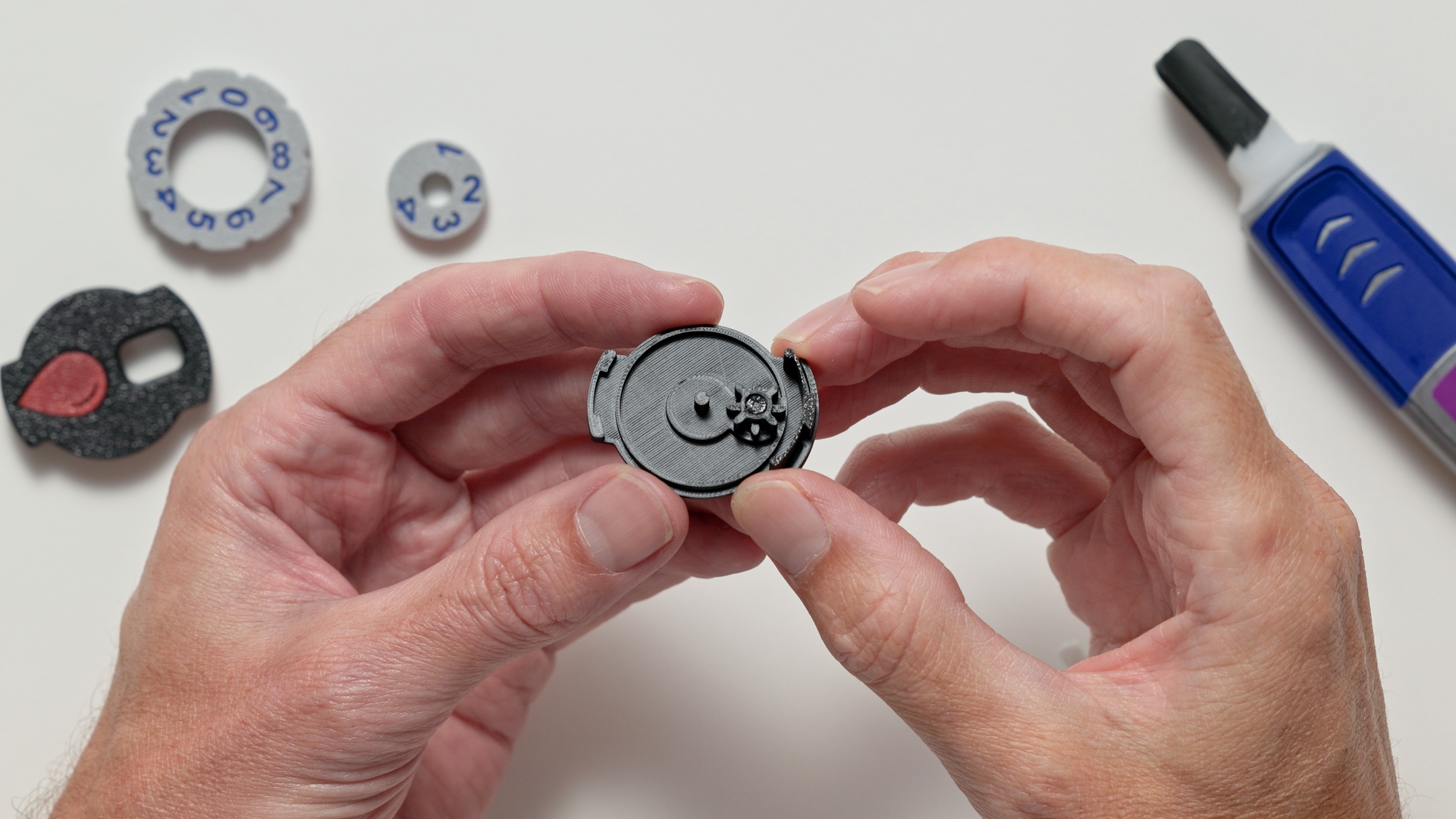

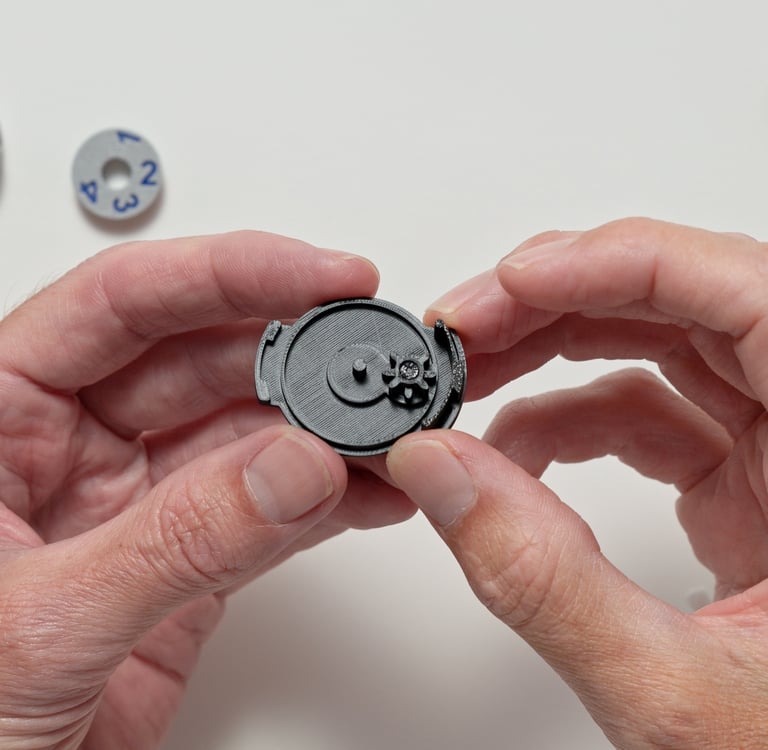

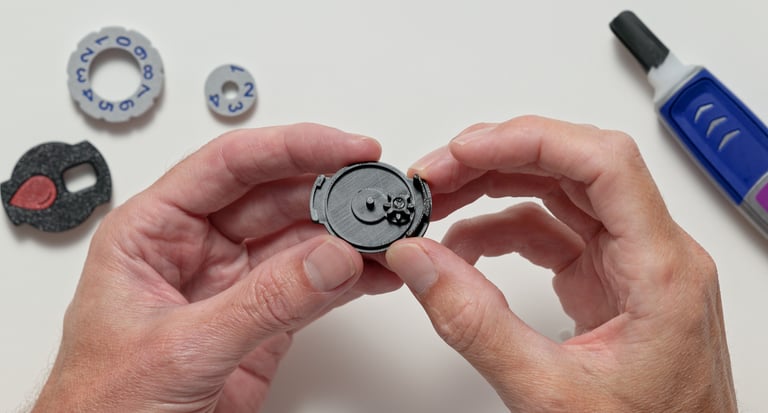

Take the small gear and put it on the mount, making sure the flat side of the small gear is facing down.
Rotate the small gear so that the half height teeth are facing up, down, left and right.
Step 4.

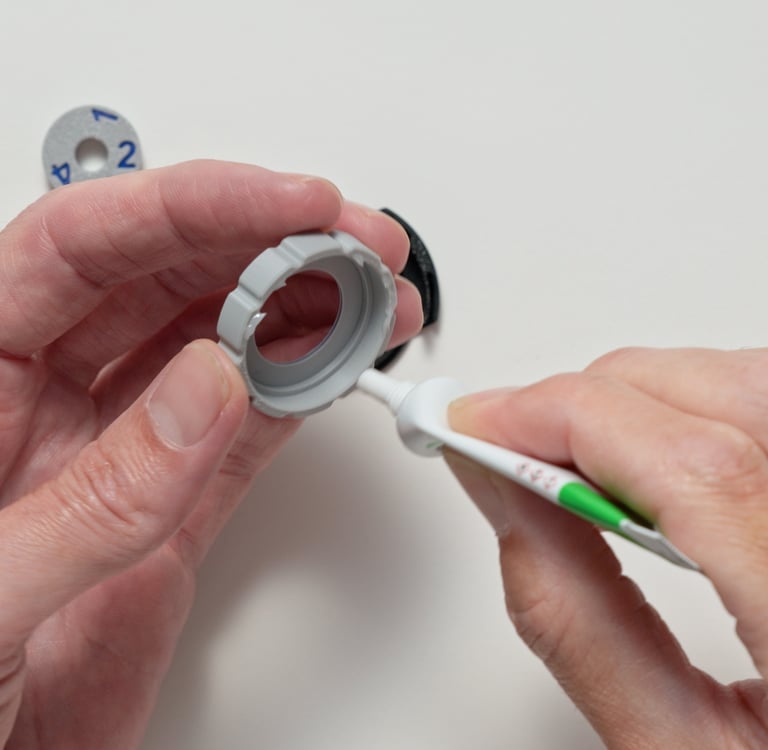

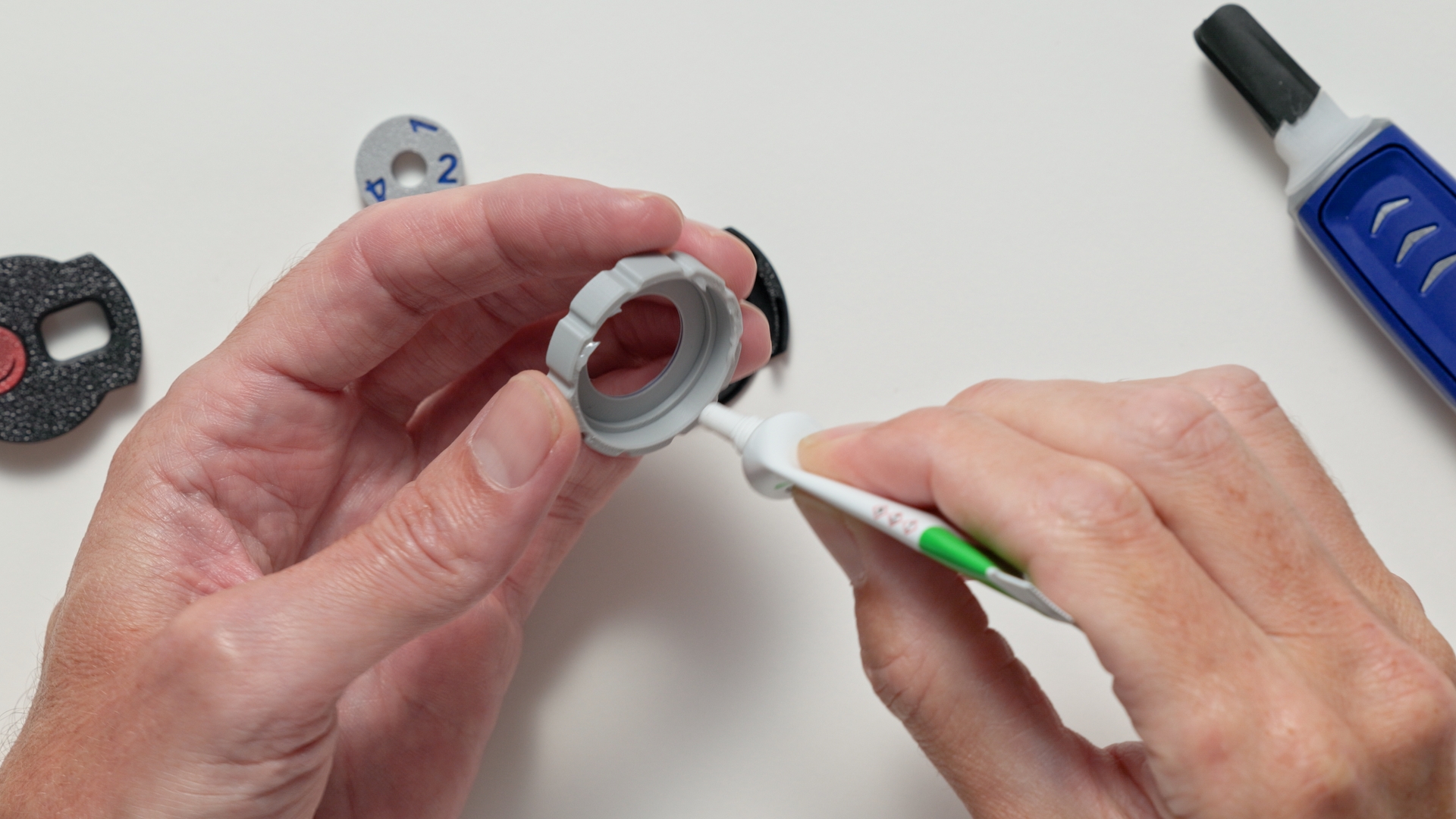

Grease the inside of the Large and Small dials
Step 5.

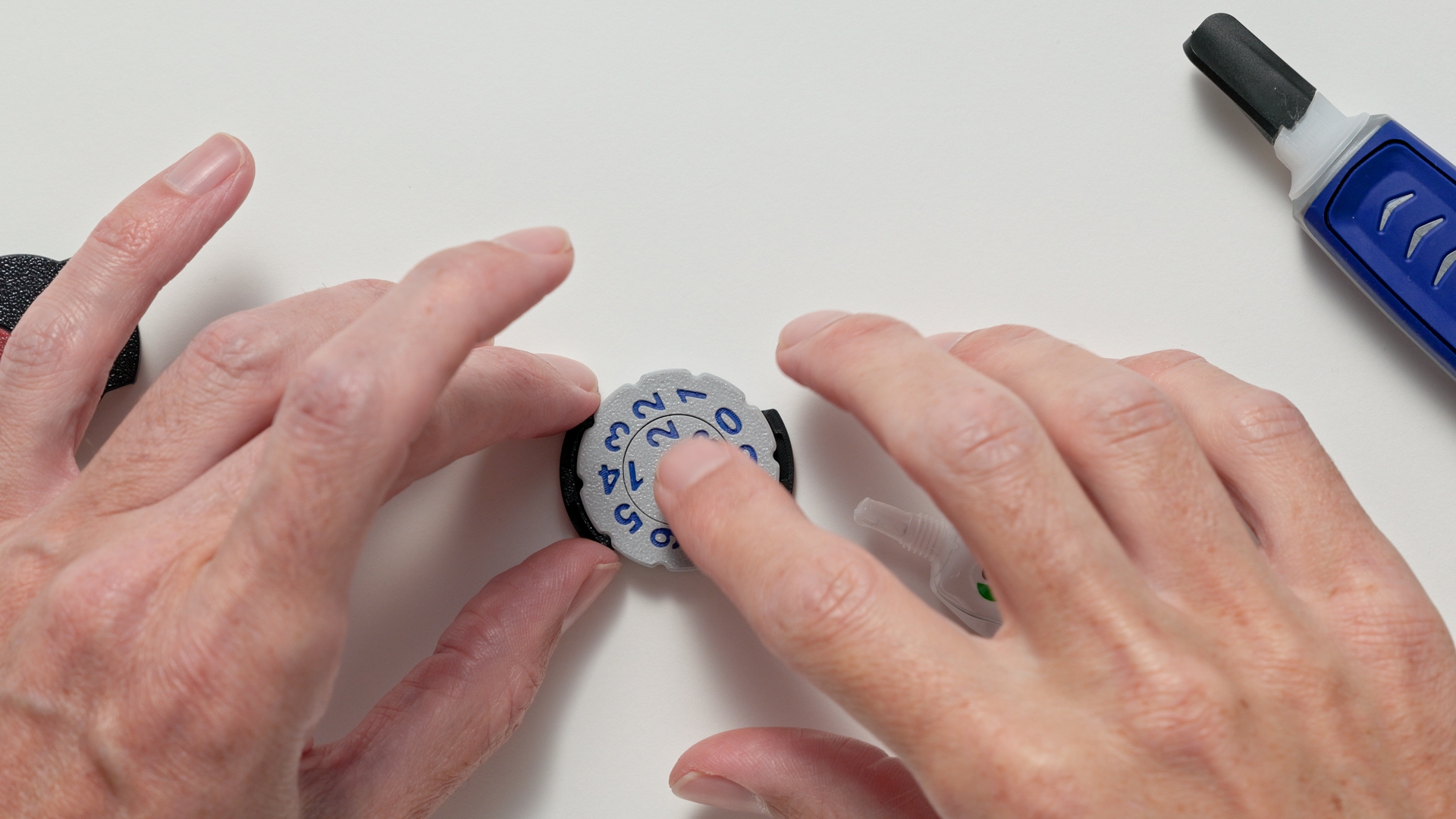

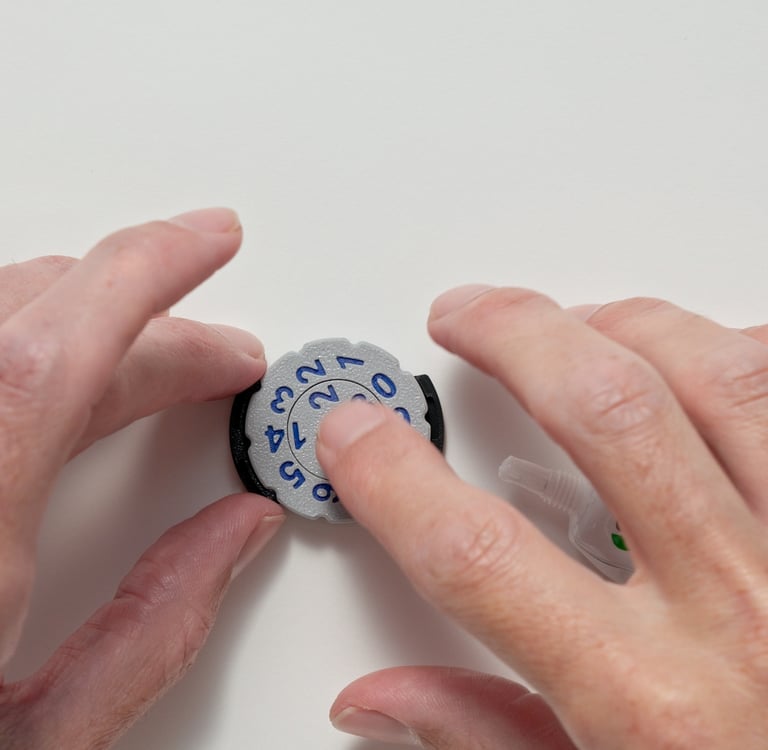

Place the large dial onto the assembly with the number 4 lined up to the centre of the clicker.
Place the small dial with the number 1 lined up so the counter reads 14.
Step 6.

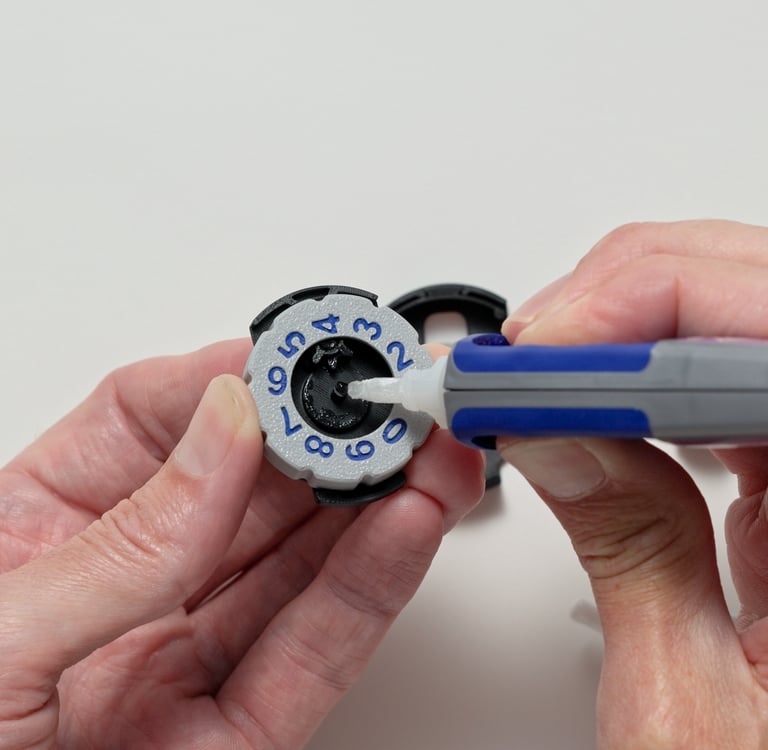

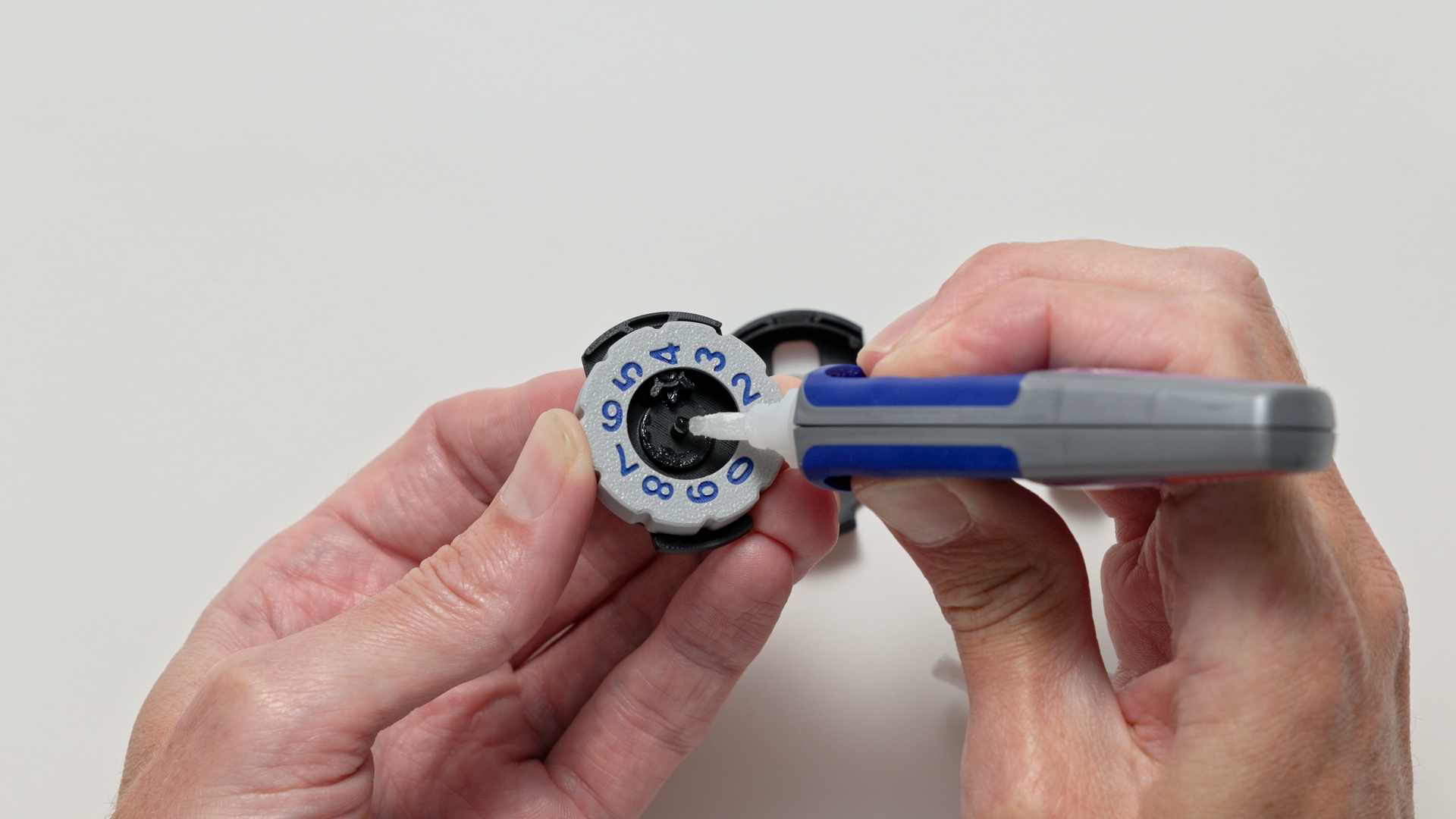

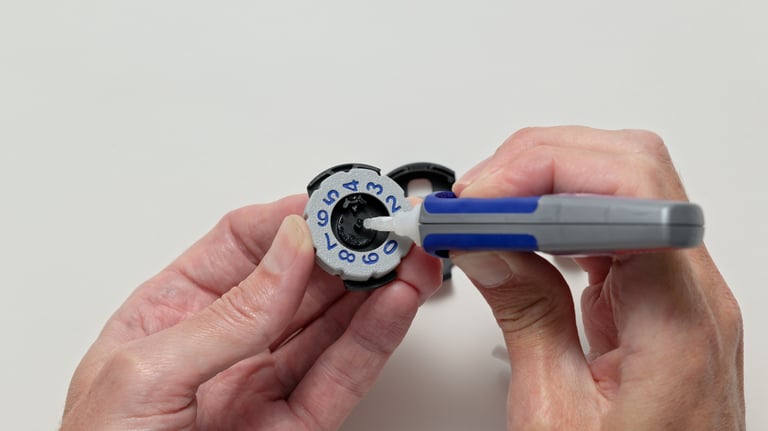

Place some superglue on the centre pole and fit the top cover into place. Hold for at least one minute to allow the glue to set.

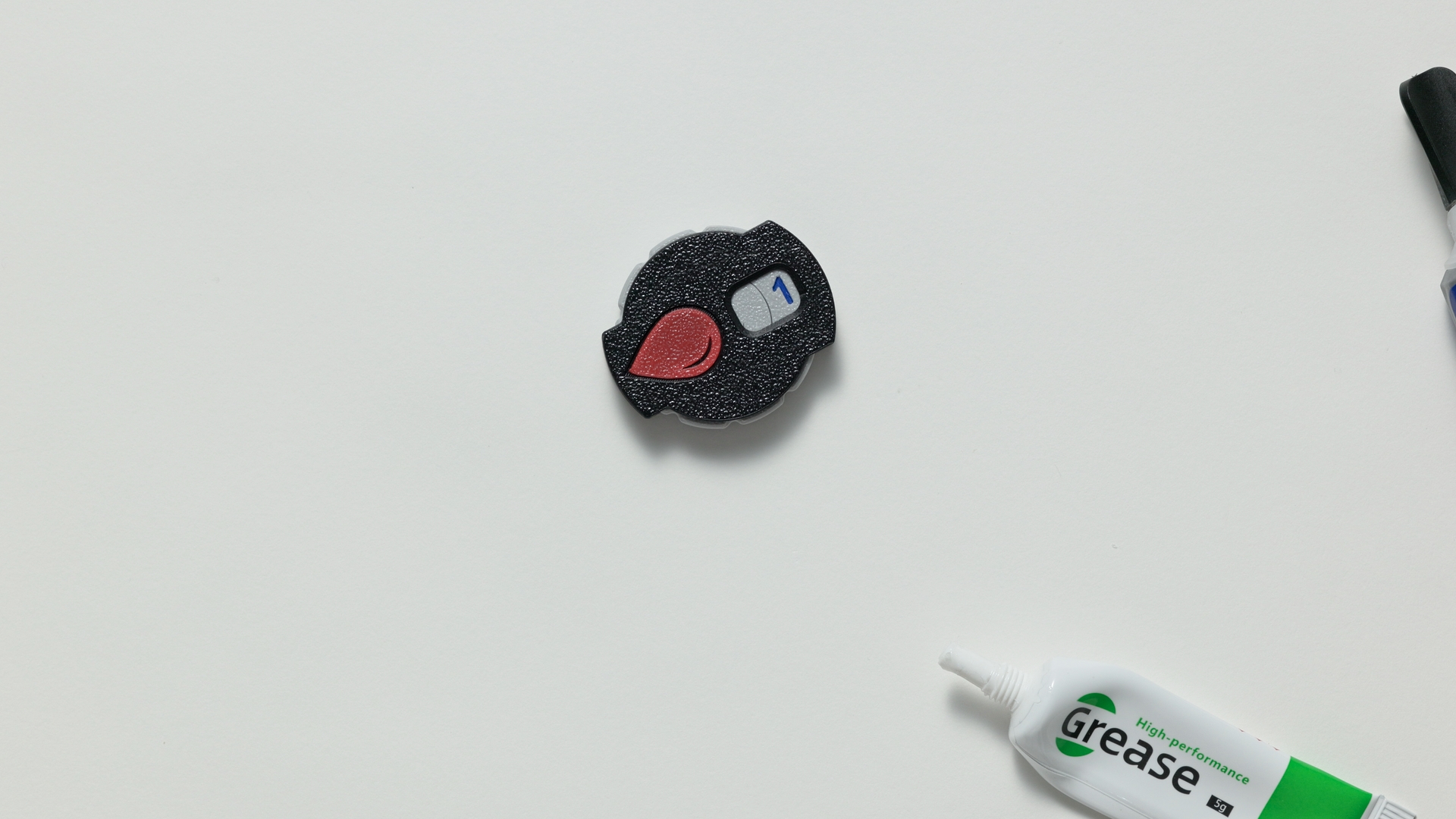

Assembly is complete!
